Aluminum honeycomb panel DEFINITION

Aluminum honeycomb panel is also a composite material that can be used for a wide variety of applications from the transport industry to architecture, and has fantastic properties such as extraordinary flatness, a large variety of colours, and high formability.

The product’s aluminium honeycomb core gives the composite panel a high rigidity and an extremely low weight. Aluloyal® therefore has a definite advantage when it comes to projects with high demands on material stiffness – such as façade cladding or roofing where it will be exposed to an extremely high wind load, or for large self-supporting roofs.

Aluloyal® – the first lightweight panel that is a bond for life!

Aluminum honeycomb panel PRODUCTS PROPERTIES

Unlike conventional honeycomb composite panels, the system components of Aluminum honeycomb panel are bonded in a continuous process. The material does not become brittle-hard but shows tough and resilient properties and excellent peel strength – the basis for a high product quality. Planners, architects, and designers opt for Aluminum honeycomb panel because it combines high mechanical properties – such as the tensile strength of the cover sheets – with outstanding processing and aesthetic features.

Thanks to continuous production process, large size panels up to the lengths of 9m are possible with extraordinary flatness. Aluminum honeycomb panel can be easily fabricated with perfect details using ordinary tools. Hence a great variety of applications are possible. It is this characteristic which truly make Aluminum honeycomb panel the ideal choice – not just for outdoor applications such as façade cladding, roofing, balconies, and shelters – but also for interior design such as creative ceilings.

In addition to its low weight and perfect flatness, Aluminum honeycomb panel shows excellent weathering resistance. When it comes to surface finishing, only the highest quality lacquering systems with optimum resistance to weather and industrial pollution are used.

THICKNESS	ENTITY	6mm	10mm	15mm	20mm	25mm	30mm
Thickness of front sheet	[mm]	1.0	1.0	1.0	1.0	1.0	1.0
Thickness of back sheet	[mm]	0.5	0.5	1.0	1.0	1.0	1.0
Weight	[kg/m²]	4.7	5.0	6.7	7.0	7.3	7.6

Surface treatment:

1. exterior aluminum KYNAR 500 fluorocarbon paint,thickness ≧40Um,compliant with AAMA2605 specification

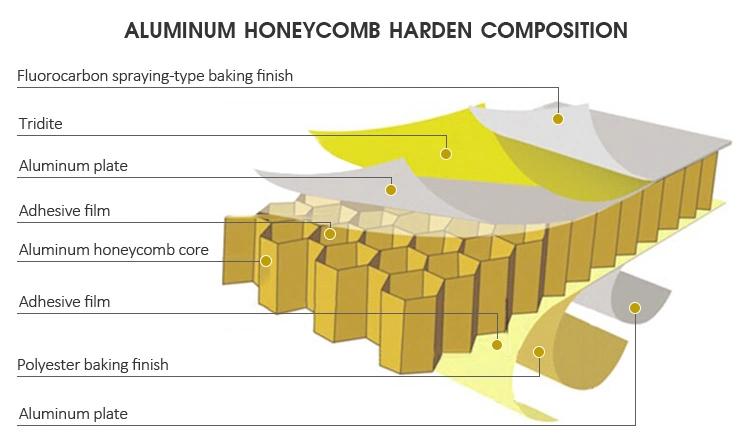

2. Aluminum honeycomb panel structure

(1).aluminum facing sheet ASTMB209,aluminum association specification(3003-h24/3105-h24 for painted finishes)(5005-h34 for anodized finishes)

(2). aluminum lining sheetsASTMB209,aluminum association specification(3003-h24/3105-h24 for painted finishes)(5005-h34 for anodized finishes)

(3) Core material :aluminum honeycomb structure forming hexagonal cell when expanded.

A. cell thickness :adjustable as per requirement such as 12mm  20mm or 25mm.

B. Wall thickness 0.04mm

C. Unit size:1/4 inch

D. The cell wall should be perforated

(4) Adhesive :two-component 100% solid adhesive recommended by manufacturer.designed specifically for laminating wall panels

A. The adhesive should produce a semi-elastic bond that is resistant to heat, cold and moisture

B. Applicable temperature range :-40℃ to 80℃

Aluminum honeycomb panel has the following great properties:

A large variety of colours and perfect flatness

Low weight and extremely high rigidity

High formability allows design freedom to architects and planners

Vibration damping (no additional sound damping needed)

Simple processing using conventional tools (e.g. for folding and bending)

Allows smooth handling on-site, even with large size panels

Low cost for substructures and fasteners

Short construction time, adherence to schedules, low cost

Excellent weather resistance

The combination of formability, flatness, stability and weather resistance characterises this incredible material.

Due to its composite structure, aluminum honeycomb panel can take on many different shapes. Think of it like a separate ‘skin’ that wraps around a building’s structure, adapting and flowing with its contours. However, this material’s perfect formability does not affect its stability and flatness – the high rigidity of the panel remains.

Lightness meets rigidity

The composite structure of aluminum honeycomb panel means it has an impressive strength to weight ratio, even when compared to large panel sizes. Despite its low weight – which makes aluminum honeycomb panel easy to transport and handle – its rigidity helps maintain its shape and flatness, even when exposed to extreme temperature changes.

Sustainability

aluminum honeycomb panel: Environment, Safety, and Quality

aluminum honeycomb panels is the parent company of aluminum honeycomb panel and is recognised across the globe as one of the leaders in the field of sustainability. Its reputation is spread far and wide, including among other diversified producers and raw material processing companies around the world.

The company’s unflinching commitment to sustainability – along with taking the needs of all key groups into account – enables it to make decisions of the highest economic, social, and ecological value. aluminum honeycomb panel also commits to continuous self-improvement programs for environmental protection, many of which exceed government regulations.

Recycling

aluminum honeycomb panel can be fully recycled with any other aluminium without prior separation or sorting (scrap value).
