What is aluminum honeycomb core?
Aluminum honeycomb is a structure composed of countless aluminum foil hexagonal cylinders. Honeycomb was named after its structure's resemblance to that of beehives. Aluminum Honeycomb is known for its light weight - about 97% of its volume is occupied by air.
What are the advantages of the honeycomb structure?
Honeycomb structure is widely used in the field of composite materials due to its high strength-to-weight ratio, energy absorption, vibration control, thermal buckling resistance, acoustic absorption characteristics.
SMALL APERTURE ALUMINUM HONEYCOMB CORE SPECIFICATIONS

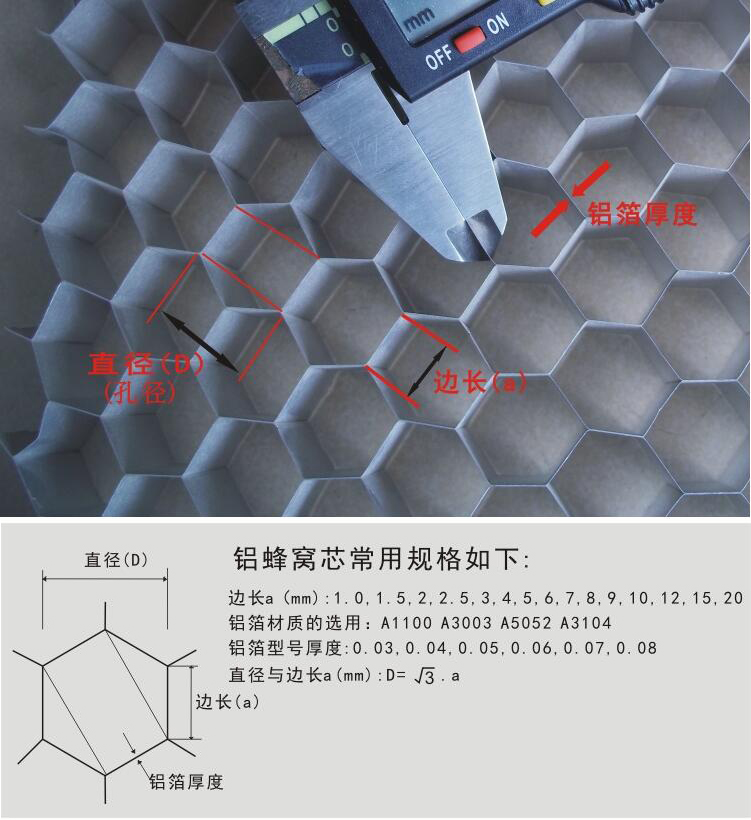

Side Length of Grid
a=0.6
a=1.0
a=1.5
a=1.83
a=2
a=2.5
a=3
Cell Size (inch)
1/25
1/16
1/10
1/25
1/8
1/6
1/5
Launch Max Dimension (Length*Width)
300*500
1000*1000
1200*1500
1600*2000
1600*1600
1600*2200
1600*2400
Model of Aluminum Foil Thickness
3003 0.02
3003 0.04, 0.03
3003 0.04, 0.03
3003 0.04, 0.06
3003 0.04, 0.03
3003 0.04, 0.03
3003 0.04, 0.06
STANDARD ALUMINUM HONEYCOMB CORE SPECIFICATIONS
Side Length of Grid
a=4
a=5
a=6
a=7.5
a=10
a=12
a=15
a=20
a=30
Cell Size (inch)
1/4
1/3
3/8
1/2
3/4
4/5
1
11/8
2
Launch Max Dimension (Length*Width)
1600*3100
1600*4000
1200*4600
1600*6000
1600*7500
1600*9000
1600*12000
1600*15000
1600*20000
Model of Aluminum Foil Thickness
3003 0.04, 0.06
3003 0.04, 0.06
3003 0.04, 0.06
3003 0.04, 0.06
3003 0.04, 0.06
3003 0.04, 0.06
3003 0.04, 0.06
3003 0.04, 0.06
3003 0.04, 0.08
