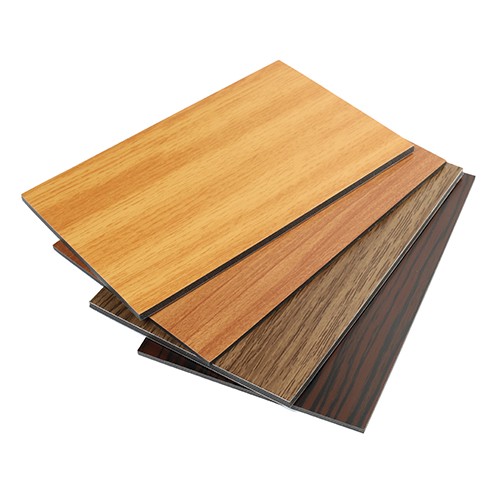

Wooden Grain Aluminum Composite Panel

Product Item : aluloyal-017
Category： Wooden Aluminum Composite Plates
size:1220x2440mm
thickness: 2mm 3mm 4mm 5mm 6mm
Strand:Regular or customized
Usage:Interior Decoration Materials
Product description：Wooden grain Aluminum composite panel factory,Wooden grain aluminum composite panel manufacturers,Wooden grain aluminum composite panel philippines,Wooden grain aluminum composite panel price,Wooden g
INQUIRY EMAIL

Wooden Aluminum Composite Panel (ACP) Overview

Wooden Aluminum Composite Panels are engineered materials combining the aesthetic appeal of wood with the durability and functionality of aluminum. They are widely used in both interior and exterior architectural applications. Below is a detailed synthesis of key information from the search results:

1. Structure and Composition

-Core Material: A thermoplastic core, typically low-density polyethylene (LDPE) or fire-retardant (FR) polyethylene, sandwiched between two aluminum sheets .

- Surface Coating:

- Exterior: PVDF (Polyvinylidene Fluoride) for UV resistance, weatherproofing, and longevity (15–20 years warranty) .

- Interior: PE (Polyester) or other coatings like FEVE or Nano for cost-effectiveness and aesthetic flexibility .

- Wood Texture: Achieved through high-pressure laminating or printing techniques, mimicking natural wood grains .

2. Key Specifications

Parameter	Range
Panel Thickness	2mm–6mm (common: 3mm, 4mm; customizable up to 6mm or more)
Aluminum Thickness	0.05mm0.5mm (standard: 0.3mm–0.5mm)
Width	900mm–2000mm (standard: 1220mm, 1250mm)
Length	Up to 6000mm (customizable up to 11,500mm for large projects)
Weight	5–6.5 kg/m² (for 4mm thickness)
Standard Sizes	1220mm × 2440mm, 1220mm × 3050mm (other sizes available on request)

3. Applications

- Exterior: Curtain walls, facades, signage, tunnels, and column covers .

- Interior: Ceilings, kitchens, bathrooms, balconies, and decorative wall panels .

- Specialized Uses: Vehicle bodies, exhibition halls, and urban furniture .

4. Performance Features

Fire Resistance: Rated A2 or B1 due to fireproof cores and non-combustible aluminum layers .

Weather Resistance: PVDF coatings withstand extreme temperatures (-50°C to +90°C) and UV exposure .

Mechanical Strength: High impact resistance (50 kg/cm²) and peel strength (average 131N.mm/mm) .

Thermal and Sound Insulation: Thermal conductivity of 0.19 kcal/mh°C and sound insulation up to 25dB .

Eco-Friendly: Reduces deforestation by replicating wood aesthetics without using natural timber .

5. Customization and Certifications

- Color/Design: Over 100 wood-grain patterns and customizable colors (RAL, PANTONE) .

- Certifications: CE, ISO 9001, SGS, ASTM, and fire safety standards (A2, B1) .

- Warranty: Up to 20 years for PVDF-coated panels in exterior applications .

6. Manufacturing and Logistics

- Production Capacity: Leading manufacturers produce 20,000–250,000 m²/month .

- Delivery: 15–25 days after deposit, with MOQs starting at 600 m² .

- Packaging: Wooden crates or pallets for safe transportation .

Comparison with Solid Aluminum/Steel

Attribute	Wooden ACP	Solid Aluminum	Steel
Weight	Lightweight	Heavy	Heaviest
Flatness	Very Flat	Uneven	Uneven
Installation	Quick	Slow	Very Slow
Cost	Economical	Medium	Expensive
Thermal Insulation	Best	Poor	Poor

Conclusion

Wooden ACPs offer a versatile, durable, and sustainable alternative to natural wood and traditional metals. Their customizable designs, fire resistance, and ease of installation make them ideal for modern architectural projects. For detailed technical specifications or supplier options
