Aluminium Composite Boards and Signs

Aluminium Composite Boards and Signs

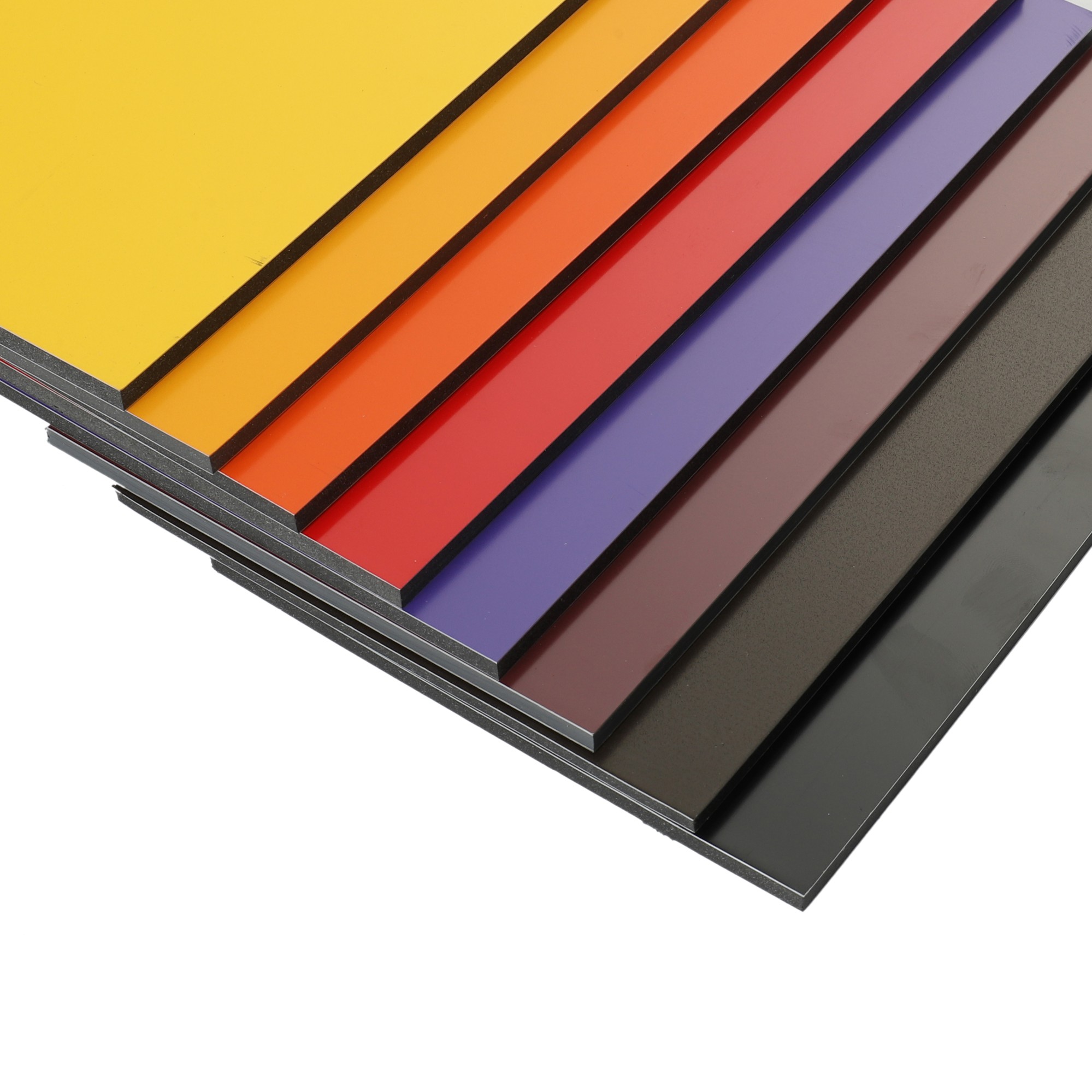

Aluminium composite (ACM) is used mainly for outdoor signage applications, they are very hard-wearing, rigid and weather resistant. These signboards don’t rust and are printed with UV stable and waterproof inks to prevent fading and to ensure vibrant graphics that last for many years. ACM has a smooth flat surface that can either be printed directly onto or printed laminated graphics mounted to the face.

Primarily used in shop-fitting projects for shop fascia, wall signs, parking signs, safety signs, directional and way finding signage, its super smooth surface is highly receptive to receiving both screen and digital inks. Point of sale and retail graphics should be considered where you need a stronger and permanent display.

Easily installed to a surface with drilled holes, ACM is available in 3mm panels with square or round corners in any bespoke size or custom shape.

Aluminium Composite Boards and Signs Specifications and Sizes:

Aluminum skin thickness: 0.12mm-0.50mm

Total panel thickness: 2mm-6mm

Width:1000mm,1220mm(regular),1250mm,1300mm,1500mm,1550mm, 1575mm,2000mm(maximum)

Length:Up to 6500mm

Standard size:1220mm(Width) ×2440mm(Length)

Surface Treatment:PVDF coating and PE coating

Non-standard sizes and special colors are available depending on customers offers

Characteristic of aluminum composite sign board：

1. You can find colors alternative in Aluloyal with small quantity.

2. Aluminum composite sign board has width of 1000mm - 2000mm;All length is available here.

3. Aluminum composite sign board paint performance is according to ECCA standards, 8 years guarantee on PE coating, 15 years on PVDF coating. It is processed by UV ray and High temperature baking, so it is more hardness and good property in rub-resistance.

4. Panel thickness available: 2mm, 3mm, 4mm 5mm or 6mm

5. Aluloyal is supposed to screen printing, light weight but surprising rigidity, it is the best choice for outdoor advertise.

6. Aluloyal panel can be bend or curved by normal roller or bending machine, also could be customized as your requirements

Aluloyal provide PE Aluminum Composite Panel,Glossy Aluminum Composite Panel,PVDF Aluminum Composite Panel,FEVE Aluminum Composite Panel,Non-combustible A2 ACM Panels,
Fire Retardant FR B1 ACM Sheets,Mirror Aluminum Composite Plates,Wooden Aluminum Composite Plates,Brushed aluminum composite sheets,Marble Aluminum Composite Sheets,Unbroken Aluminum Composite Panel,Signage aluminum composite panel,2m Width Aluminum Composite Panel,Anti-static ACM Sheets,Nano Aluminum Composite Panel,Sparkle ACP Panels,Chameleon ACP Sheets,Antibacterial ACP Panels,Perforated Aluminum Composite Materials,Carved Aluminum Composite Materials,Anodized Aluminum Composite Materials
