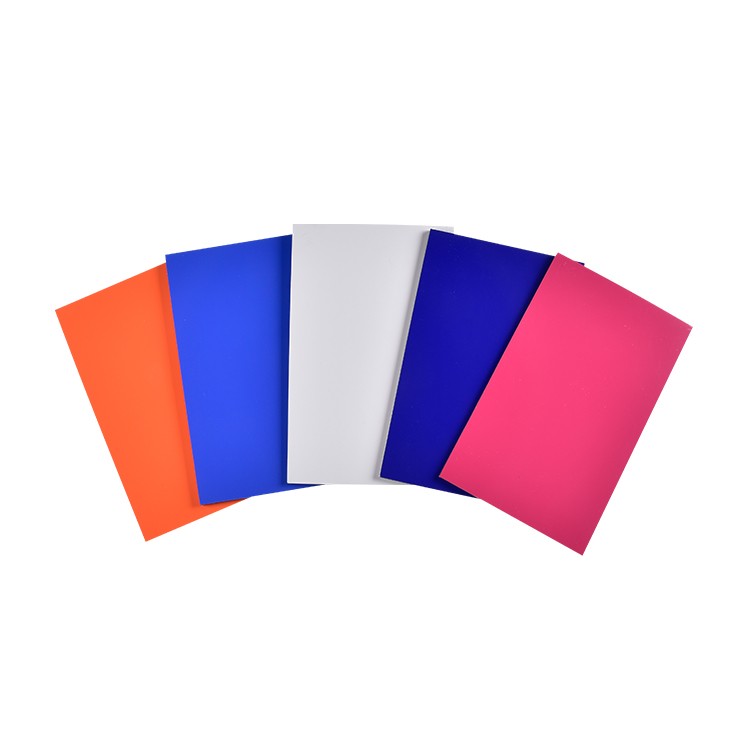

2m width Aluminum composite panel

Product Item : Aluloyal-051
Category： 2m Width Aluminum Composite Panel
Thickness:3mm 4mm 5mm 6mm
width:2000mm
Standard Length:2050mm 2500mm 3050mm 5150mm 6250mm
Wonderful color for your choice.
Product description：2m width Aluminum composite panel factory,2m width Aluminum composite panel China Supplier,2m width Aluminum composite panel China Manufacturer,2m width Aluminum composite panel acp panels
INQUIRY EMAIL

What’s 2m width Aluminum Composite panel?

Aluminium composite panel is consisted of THREE layers, the surface and back covers of high strength aluminum alloy sheets and the core of nontoxic low density polyethylene (PE) sheet. The painting in the surface and back aluminum sheets are from PPG of USA and Becker of Sweden.

Material	Front side	Aluminum Alloy(3003) coated with Fluorin carbon resin (PVDF) or Polyester resin (PE) roasting painting
	Core	Non-toxic polyethylene or Plastic fireproof materials(B1/A2)
	Back side	Aluminium alloy sheet coated with polyester resin painting

Specification of 2m width Aluminum composite panel

Panel Thickness	3mm,4mm,5mm,6mm are available
Alu thickness	0.5mm,0.4mm,0.3mm,
Width	2000mm(Maximum)
Length	2440mm(regular),and or by customer’s offers,5800mm(Maximum)
Standard size	2000(Width)x2440(Length)x3mm(Thickness); 2000(Width)x2440(Length)x4mm(Thickness);
Surface Finish	MIRROR ,MARBLE IMITATION,WOOD IMITATION,BRUSH,PVC FILM,PP FILM,PEARL SERIES,GLOSSY SURFACE,MATT SURFACE
Core material	( Normal non toxic polyethylene, one side unbroken polyethylene, two side unbroken polyethylene, virgin LDPE, ) B1 non-combustible mineral filled core,A2 non-combustible mineral filled core
Coating	PE COATING,PVDF COATING,FEVE COATING,ANODIZED COATING
Standard	According to China National Standard GB/t 17748-2016

What is the application of 2 Meters Aluminum Composite Panel ?

1. Exterior wall curtain wall panel

2. Old building exterior wall modification and renovation

3. Balcony, equipment unit, indoor compartment

4. Kanban, signage, advertising signs, etc.

What is the advantages of 2 Meters Aluminum Composite Panel ?

Multiple Colors

Aluminum composite panels are available in almost 40 different colors and can even be made in custom colors to fit your building application. Designers can choose to have the look of aluminum, copper, zinc, or stainless steel colors. It is difficult to find another building material that can grant this kind of design flexibility with such clean and modern lines that will withstand the tests of time.

Lightweight

The finished weight of an aluminum composite panel is about 2.5 pounds per square foot after a complete installation. Compared to other materials that are incredibly lightweight with unbelievable durability and longevity.

Sustainable

Choosing to build with aluminum composite panels is a great choice for the environment because the building material is considered sustainable. The panels are usually made from about 85% recycled aluminum material. Depending on what state you live in, you may even qualify for tax credits. LEED credits may be granted if your building voluntarily uses this building material. For additional information, look into the U.S. Green Building Council to see if your construction qualifies.

Fire Resistant

To address current building codes throughout the world, aluminum composite panels are available with cores that are made of fire resistant materials. The core is built to meet codes for large buildings such as skyscrapers and high rise buildings to ensure that noncombustible materials are used to suit the building applications. When purchasing specific aluminum composite panels, be sure to check the fire specifications to ensure they meet your state’s code requirements.
